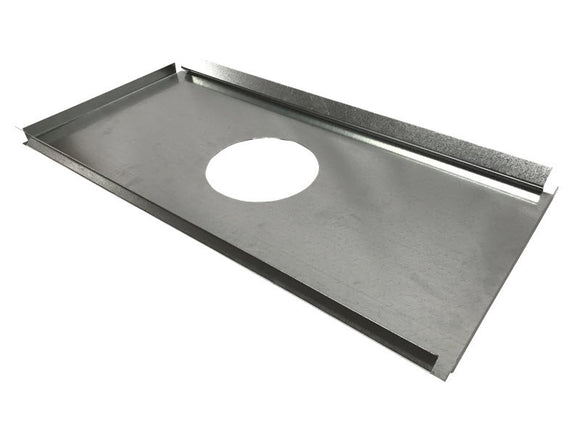

• DIY Hobby Spray Booth Fan Mount Panel by Vent Works (Fan Not Included)

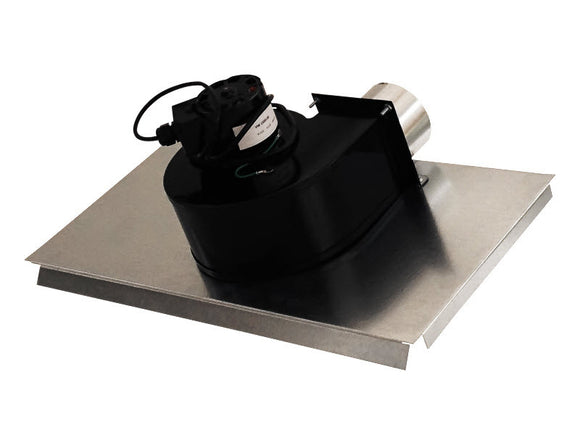

  • DIY Hobby Spray Booth Fan Mount Panel by Vent Works

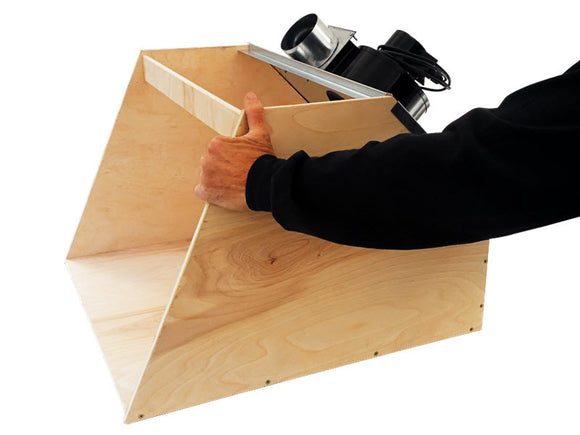

  • Placing The Fan Mount Panel On The DIY Hobby Spay Booth

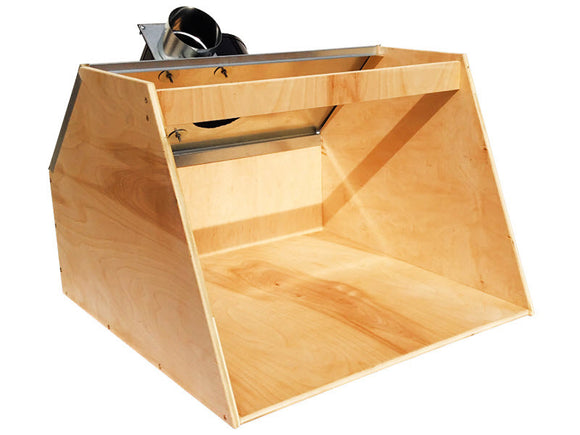

  • Blower/Fan Mount Panel On The DIY Hobby Spray Booth
  • Blower/Fan Mount Panel On The DIY Hobby Spray Booth

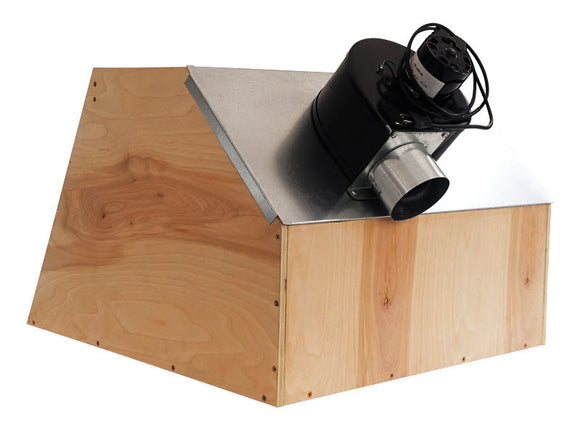

  • Fan Mount Panel Positioned For Bottom Discharge

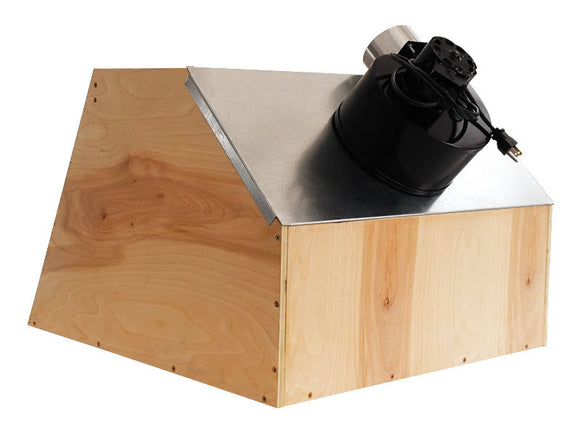

  • Fan Mount Panel Positioned For Top Discharge
1 7

DIY Hobby Spray Booth Fan Mount Panel

DIY Hobby Spray Booth Fan Mount Panel

$51.99
$59.99 $51.99
Sale Sold Out
Shipping calculated at checkout.
View full details

Hobby Spray Booth Fan Mount Panel

Easily Mount a Dayton Blower onto a DIY Hobby Spray Booth

This Mount Panel was created by Vent Works to provide an easy way to mount a Dayton Blower 1TDR3 onto a DIY Hobby Spray Booth. It was designed to be reversible, by rotating 180 degrees you can change your exhaust back and forth from top to bottom discharge. We made this panel with thick 24 gauge galvanized steel right here in the USA. This mount panel calls for the blower to be externally mounted so the motor windings will not be damaged by harmful paint and solvents.

DIY Hobby Spray Booth Kit Available Now!

Build your own spray booth and do it right the first time! Read the article to see how we did it.

Read Article Now
DIY Hobby Spray Booth Assembly Image

Assembly Instructions & Material Cut List

View Now

Specs

  • 24 Gauge Galvanized Steel
  • Hardware Included
  • Foam Gasket Included
  • Made in USA

Features

100% SATISFACTION GUARANTEED

Our spray booth parts easily withstand the rigors of time, ensuring peak performance and efficiency that endures. With every component sourced domestically, we stand firmly behind the quality of our hobby spray booth parts. Your satisfaction is our commitment – backed by a 100% money-back guarantee. Trust in the resilience of America's finest, and rest assured that you're making a wise investment in one of the best spray booth solutions available.

FAQs

Do I have to use a specific fan/blower?

Yes, this adapter may work with other similar blowers but it was designed specifically for use with the Dayton Blower model 1TDR3. Learn more about this blower: Dayton Blower 1TDR3

Does the fan mount panel require assembly?

No, it comes as one piece with hardware and foam seal included.  Of course you still have to mount the blower yourself. See video for more info:Mounting the Dayton Blower 6FHX9 to the Fan Mount Panel

Where should I use the foam seal?

Everywhere, any hole, gap or spot where the panel touches the blower and is not fully sealed. See video for more info: Mounting the Dayton Blower 6FHX9 to the Fan Mount Panel

Mounting the Dayton Blower 6FHX9 to the Fan Mount Panel
