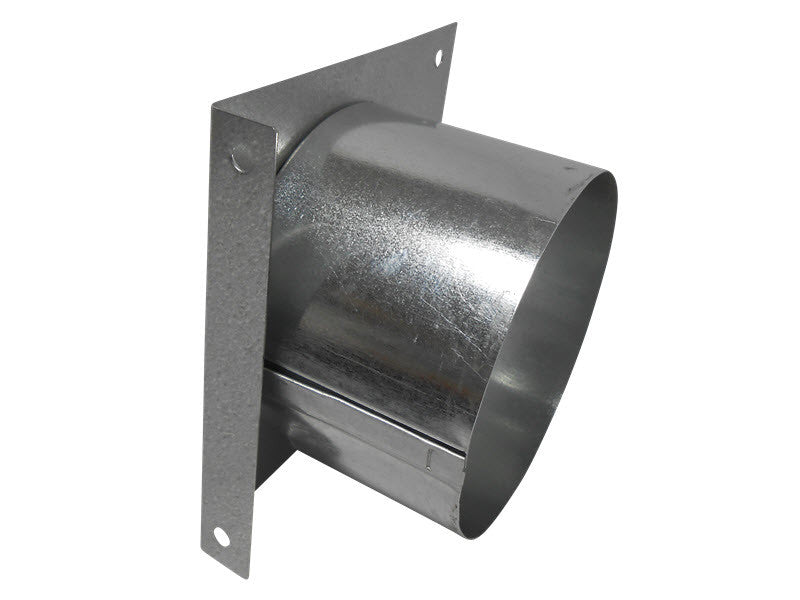

Square to Round Fan Adapter
Easily Converts Blower Outlet to Standard 4 Inch Round

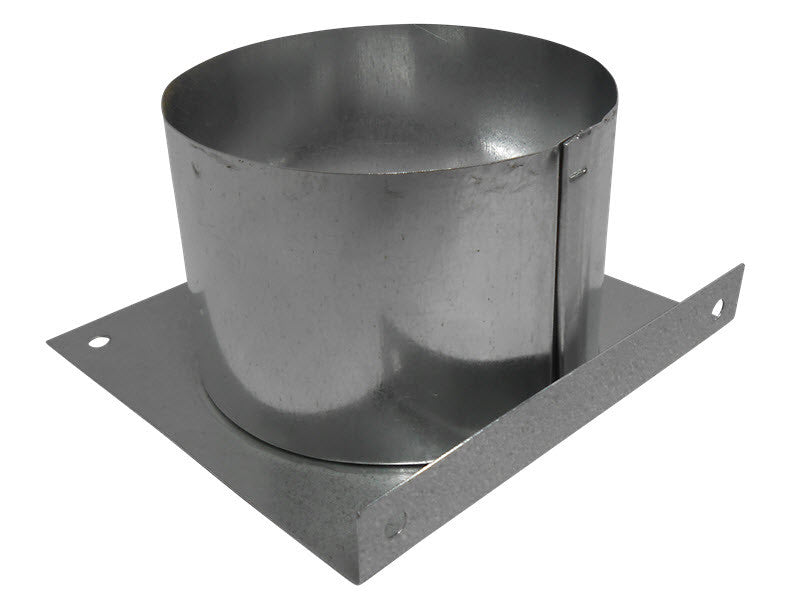

This Square to Round Fan Adapter was created by Vent Works to provide an easy way to exhaust the Dayton Blower 1TDR3. This adapter transitions from the odd-sized square exhaust outlet on the blower to a standard 4 inch circular duct and can be used with rigid, semi-rigid or flex duct. This adapter is made using thick 24 and 26 gauge galvanized steel and is manufactured here in the USA.

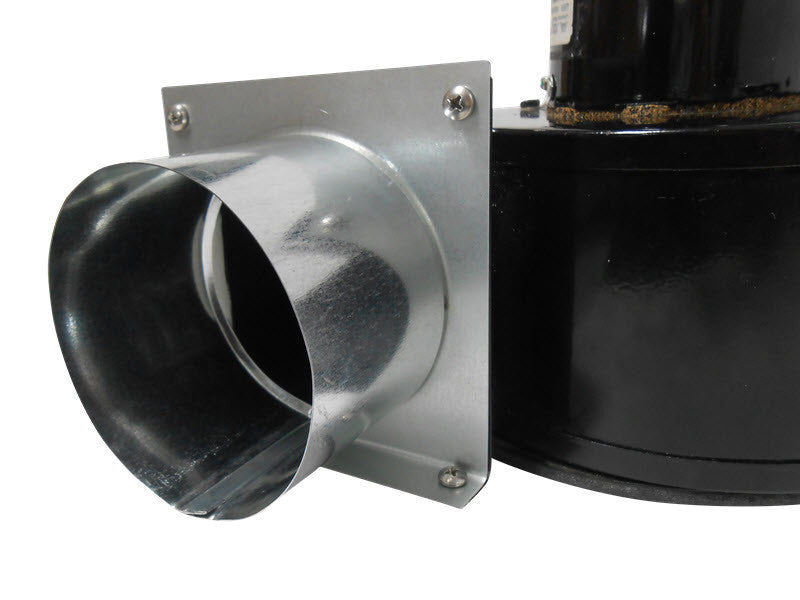

Note: You must bend the flange of the blower flush with the housing for the adapter's bolt pattern to lineup properly.
Build your own spray booth and do it right the first time!
Read the article to see how we did it.
Charlemagne T.
DIY Hobby Spray Booth Square to Round Fan Adapter
Exactly what I needed + 5 STAR Customer Service!
If I could add 5 more stars I would! This square to round adapter is exactly what I needed! And the folks at Vent Works definitely went above and beyond my expectation!!!!! I just wish I had stumbled upon their website sooner. Excellent product and 5 Star customer service. I will definitely use them when I need more venting supplies!
04/03/24

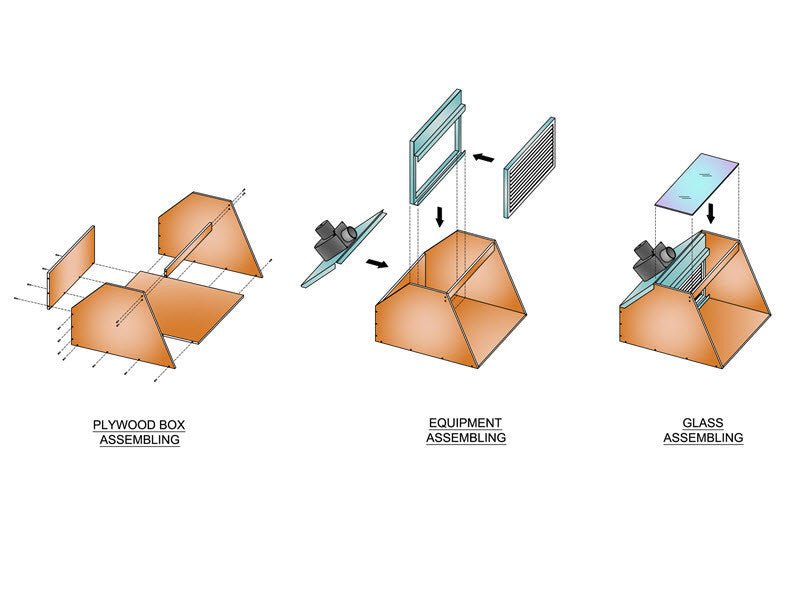

Assembly Instructions & Material Cut List
Show custom content to provide an overview of the image and heading

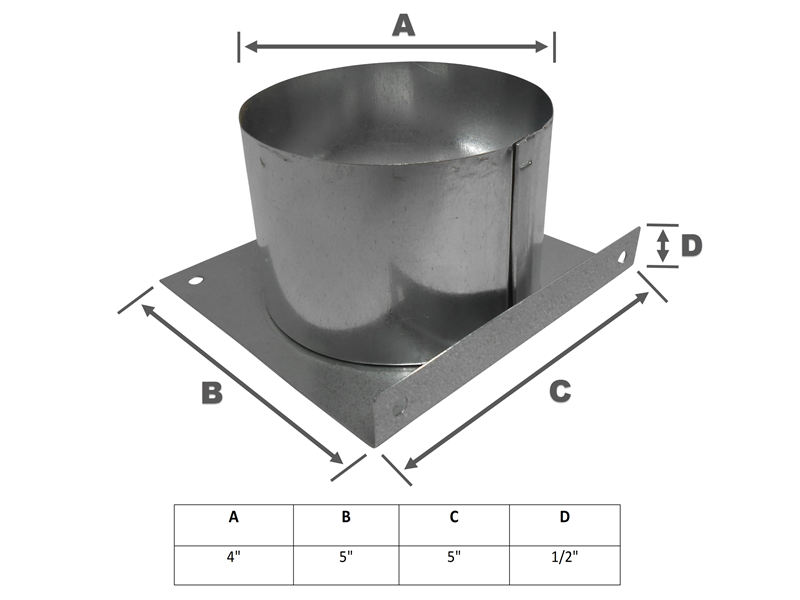

Specifications
| Specification | Details |
|---|---|
| Fits Blower Models |

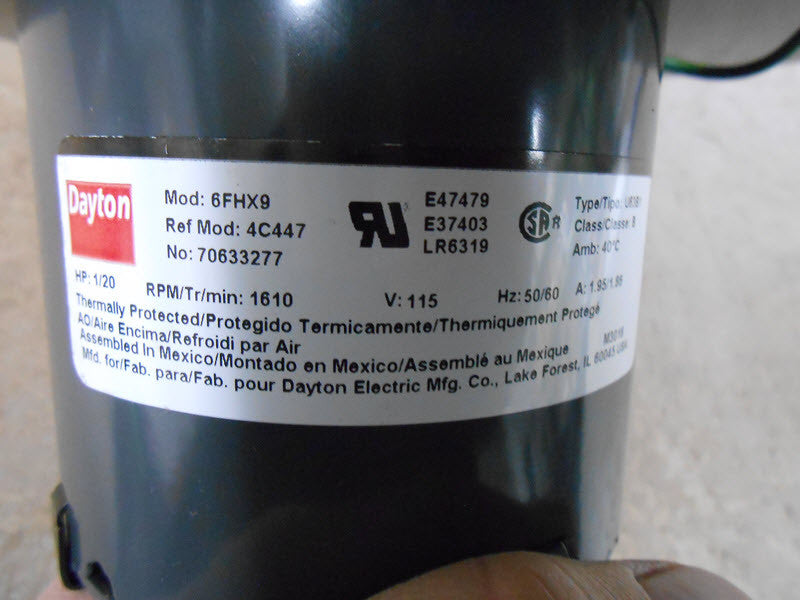

Dayton 1TDR3 Dayton 6FHX9 Dayton 4C447 Dayton 70633277 Fasco B45227 Fasco 7063-3277 AO Smith 459A AO Smith 7073-0107 |
| Diameter | 4" Inch Round Duct |
| Material | 24 Gauge Galvanized Steel Plate (Flange) 28 Gauge Galvanized Steel (Collar) |
| Connection Type | Non-Crimped |
| Installation Hardware | Included |
| Foam Gasket | Included |
| Made In | USA |
EASILY ATTACH ANY ROUND DUCT
FLEXIBLE, RIGID, OR SEMI-RIGID
Unlike other adapters on the market that claim to be 4 inch but aren’t even close, this has a true diameter of just under 4 inches so it easily fits all ducting including solid rigid pipe, semi-rigid, and even the flexible ducting that runs small. No more struggling to attach ducting!
SIMPLE INSTALLATION
