DIY Hobby Spray Booth Filter Rack

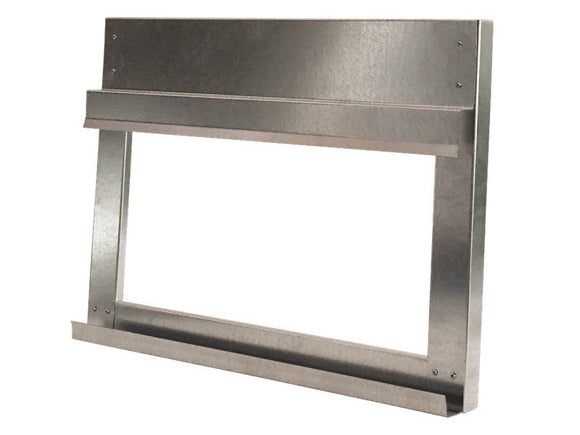

  • This Filter Rack was created by Vent Works for use in our DIY Hobby Spray Booth. It is designed to hold a 12x24x1 standard furnace filter. We made this rack with thick 24 gauge galvanized steel here in the USA.

    Note: Inexpensive standard furnace filters work best, if you use an expensive allergen filter (e.g. filtrate furnace filter) it will restrict flow and cause inadequate ventilation.

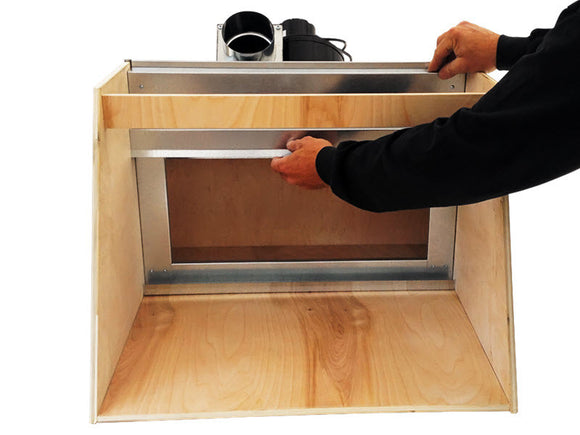

    Build your own spray booth and do it right the first time! Read the article to see how we did it.
    DIY Hobby Spray Booth

  • DIY Hobby Spray Booth Filter Rack Specifications:

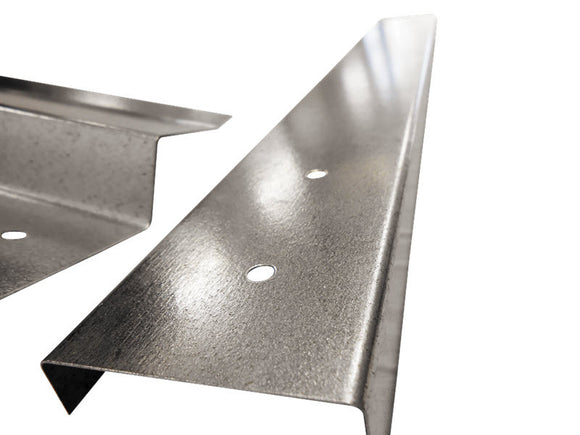

    • 24 gauge galvanized steel filter rack, for use with standard furnace replacement filter. 12" x 24" x 1"
    • 8 qty # 6 x ½ inch bolts and nuts
    • Downloadable Material Cut-List & Assembly Instructions
    • One year warranty
    • Made in USA

  • Do I have to use special filters?

    No, Actually the cheap standard furnace filters work best, if you use an expensive allergen filter e.g. filtrate furnace filter it will restrict flow and could cause inadequate ventilation.

    Does the filter rack require assembly?

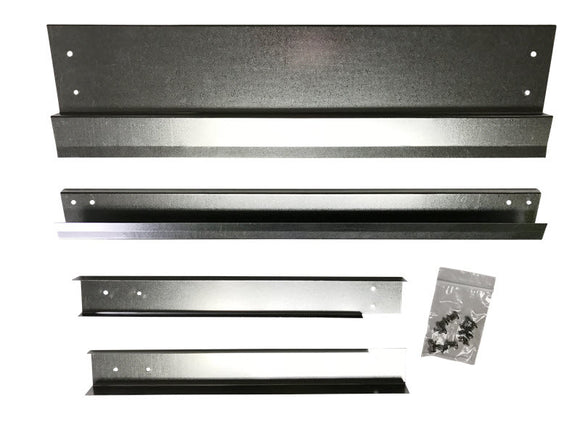

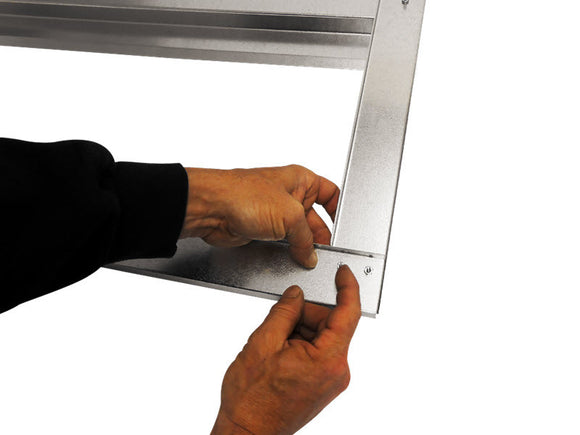

    Yes, it comes as four pieces of steel that must be bolted together. It's only 8 little nuts and bolts so assembly takes about 1 minute. All you will need is a Phillips head screwdriver.

    Do I have to change the filter?

    Yes, periodically filters should be replaced and ducts should be inspected for obstructions. This will ensure proper air flow which will reduce the risk of vapor buildup.
