Vent Works 6 Inch Window Vent
The Original Metal Window Vent Kit
When venting through a wall isn’t an option, or is undesirable, the 6 Inch Window Vent by Vent Works is your go-to solution.

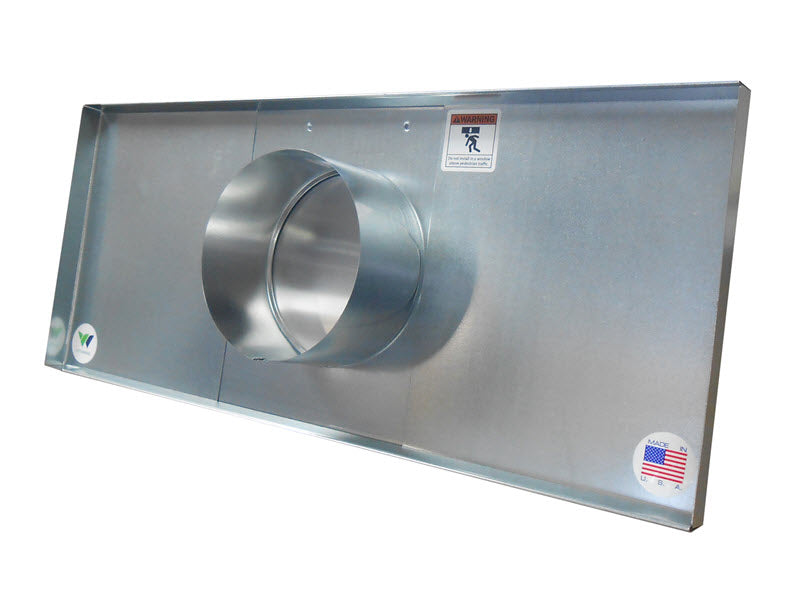

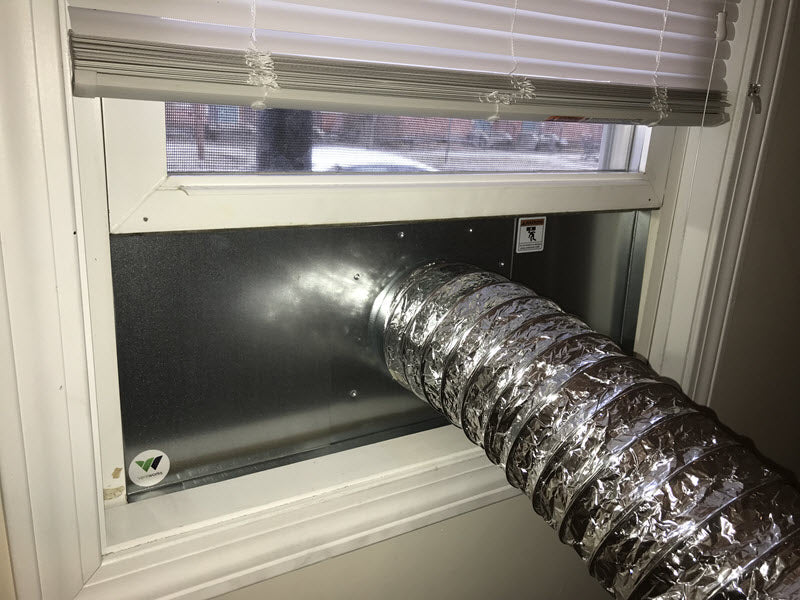

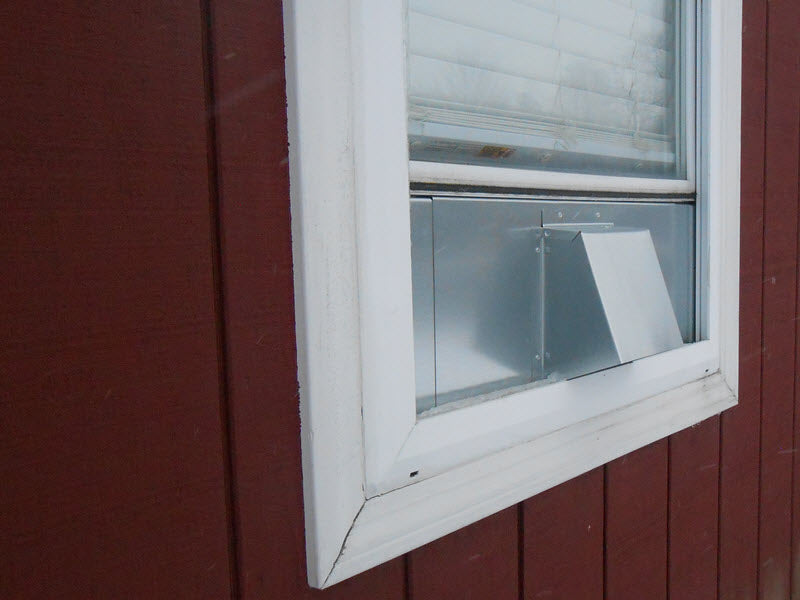

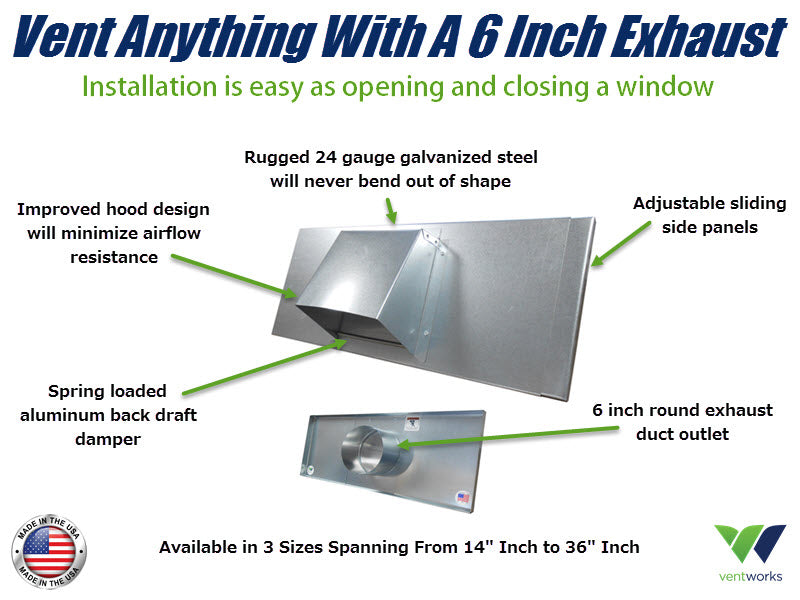

Installs like a window fan, simply place the vent in an open window, slide the side panels to fit the window opening and close the window. Heavy-duty steel construction is built to last, and proudly made in the USA.

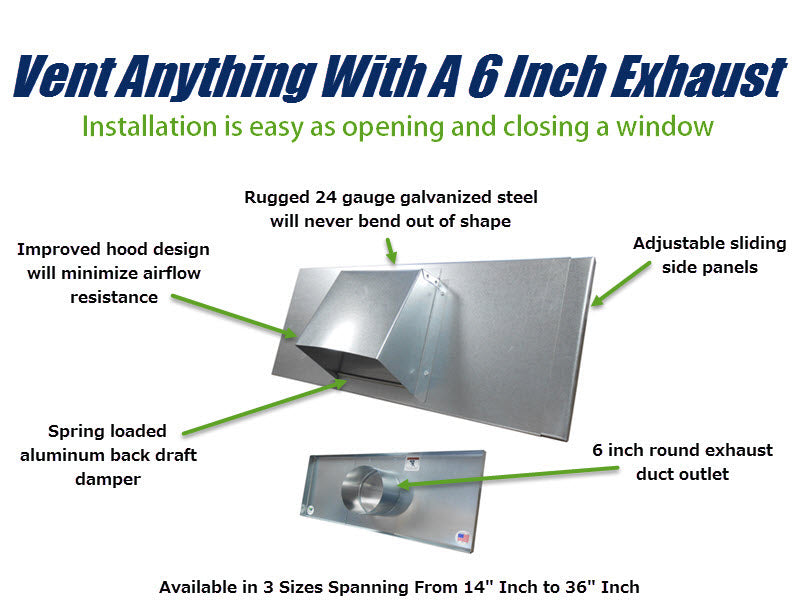

It can also be used to exhaust spray booths, exhaust fan blowers, grow rooms and virtually anything else with a 6" round exhaust.

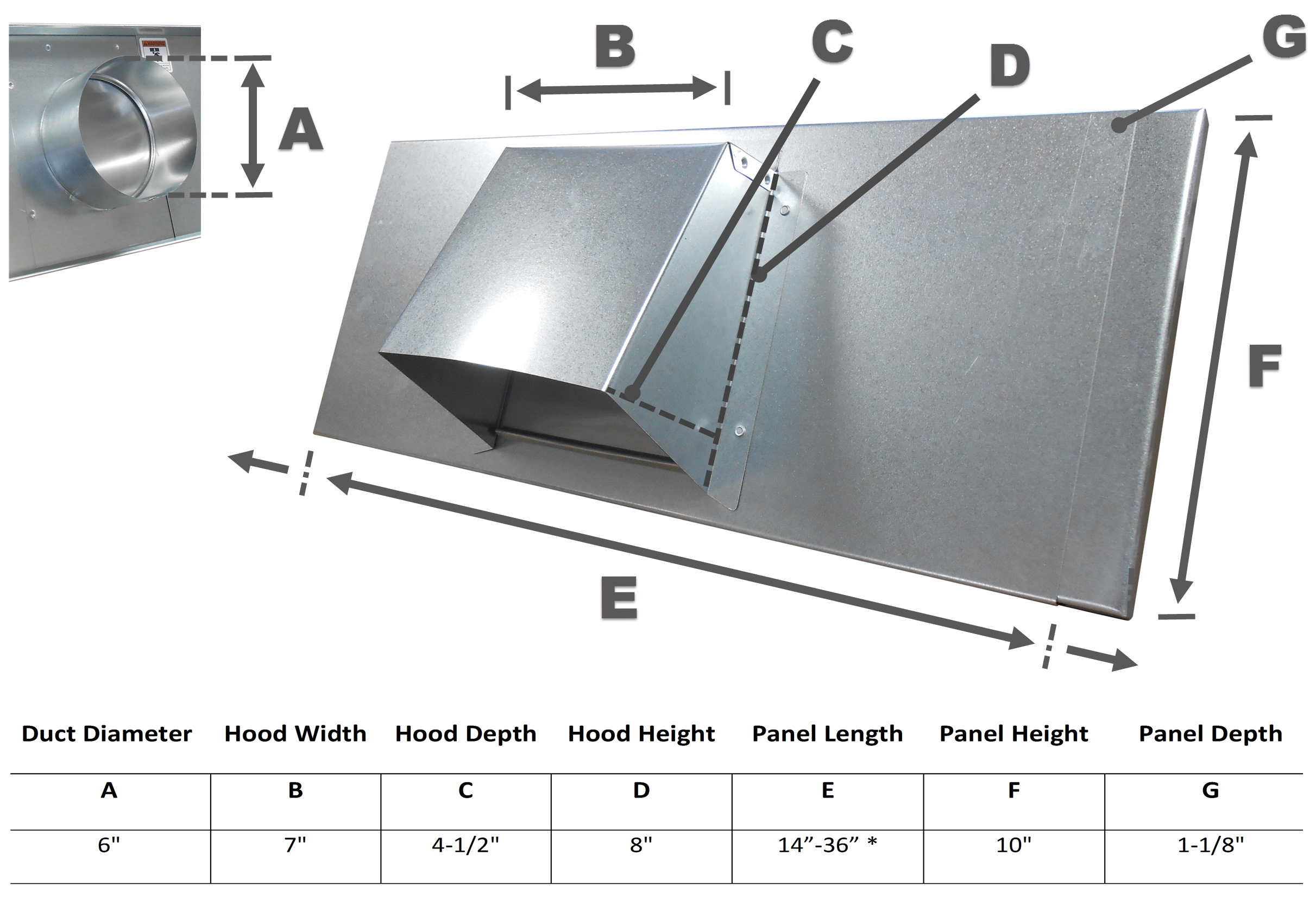

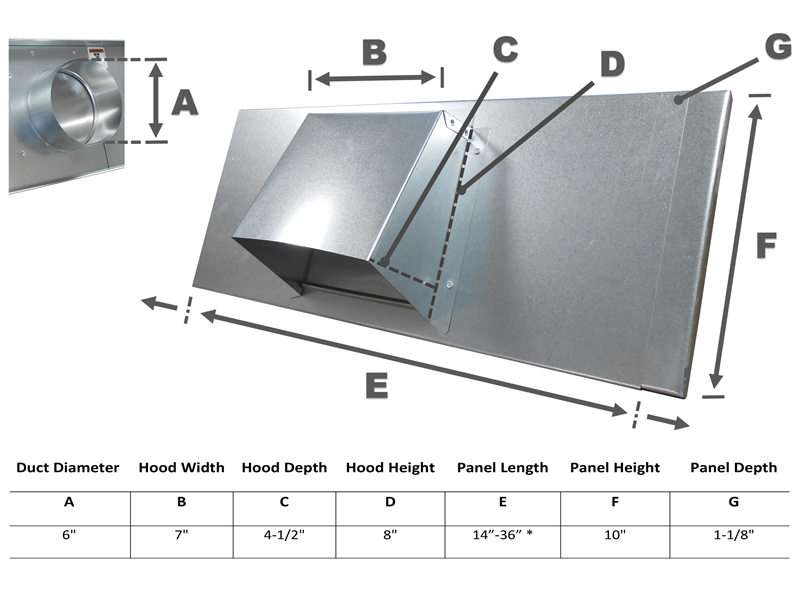

Specifications
| Specification | Details |
|---|---|

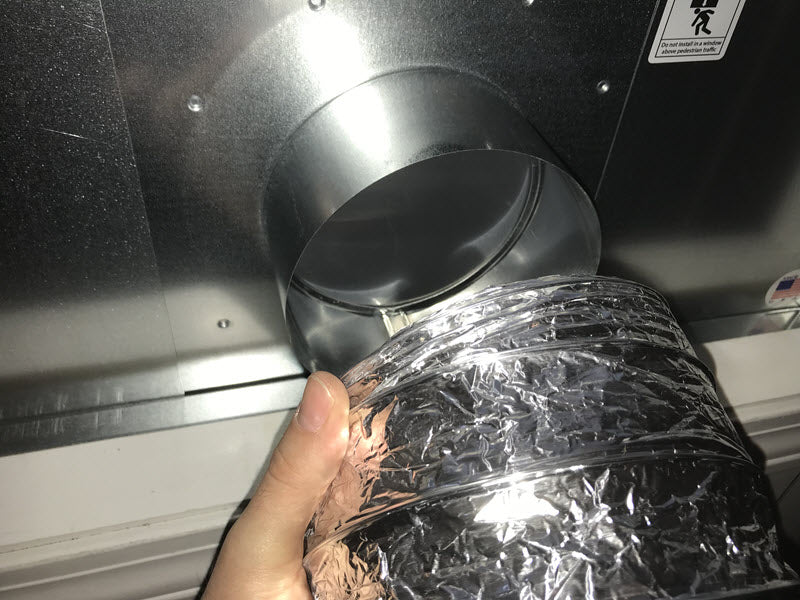

| Duct Diameter | 6" Inch Round Duct Outlet |
| Hood Width | 7" Inch |
| Hood Depth | 4.25" Inch |
| Hood Height | 8" Inch |
| Panel Length | [14"-18"], [18"-24"], [24"-36"] |
| Panel Height | 10" Inch |
| Panel Depth | 1.125" Inch |
| Material | Galvanized Steel (24 Gauge) |
| Damper | Spring-Loaded Backdraft Damper |
| Screen | Removable Screen (1/4" Metal Mesh) |
| Made In | USA |
Printable Spec Sheet

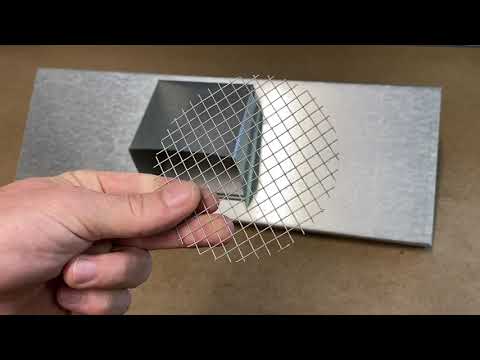

How To Install The Screen In Your Window Vent
In order to help our customers, keep out pests while their window vent is in use, we have decided to include a small removable screen with all window vent orders. Below is a quick video showing how to install one, using the Window Dryer Vent as an example.
How To Insulate The Window Dryer Vent
We designed the Window Dryer Vent so it could be permanently installed or be put in the window when in use and removed when not using. If you're going to be using the window dryer vent as a permanent solution and you live in harsh climates, we suggest you insulate it. In this article, we show how to insulate the window vent with rigid foam board insulation which is our preferred method. Then we describe insulation effectiveness, briefly discuss three common types of insulation, and end by describing how to adequately weather seal the vent.
