Vent Works 4 Inch Wall Vent
Heavy Duty Metal Wall Vents Built To Last
When venting through a wall is the best option a quality wall vent should be considered.
The 4 inch Wall Vent by Vent Works was designed with a spring loaded backdraft damper to prevent drafting from outdoors. These heavy gauge vents are not available at your local home improvement or general hardware stores.

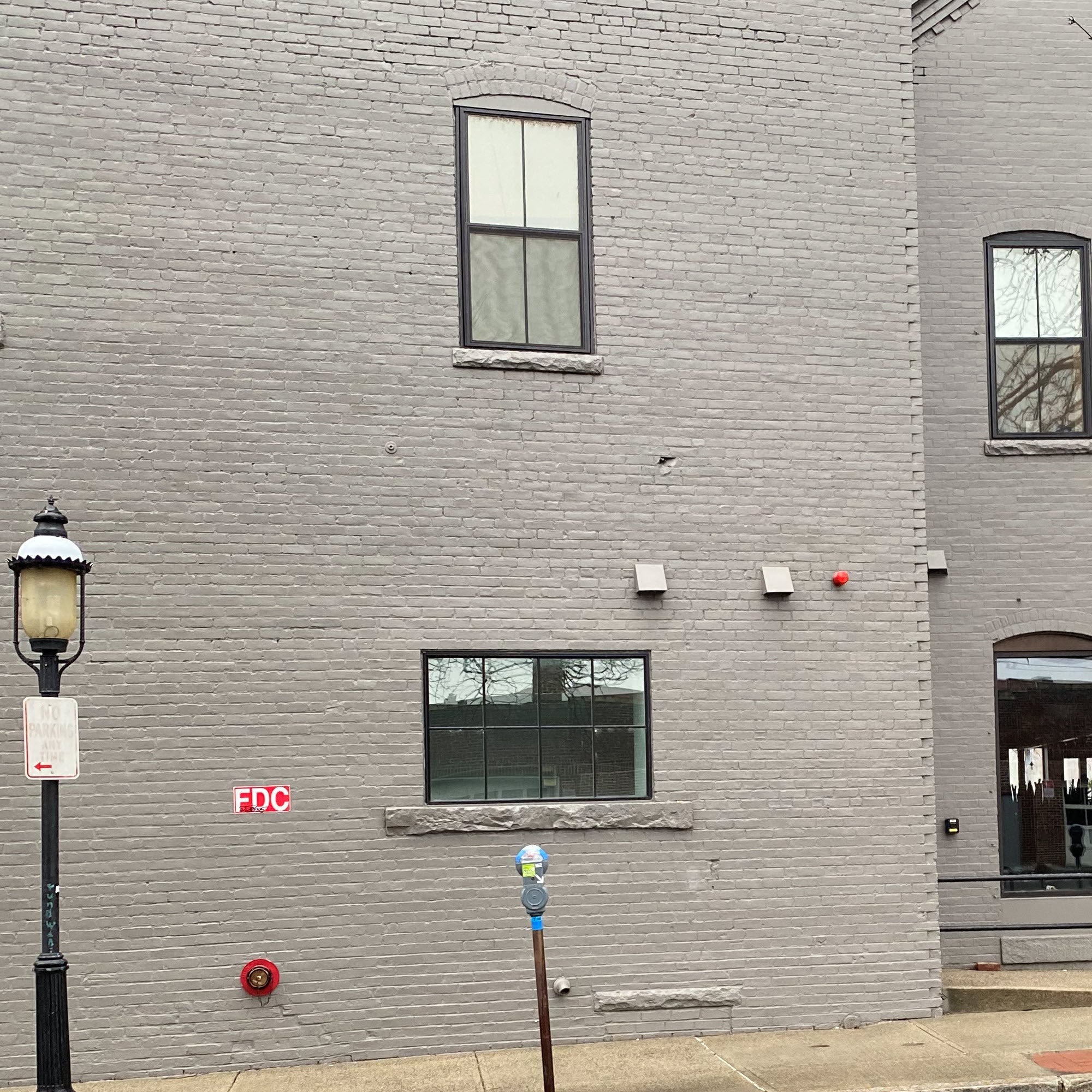

Used Everywhere That Quality Matters
From residential projects to commercial builds, our wall vents are trusted wherever durability and performance can’t be compromised.

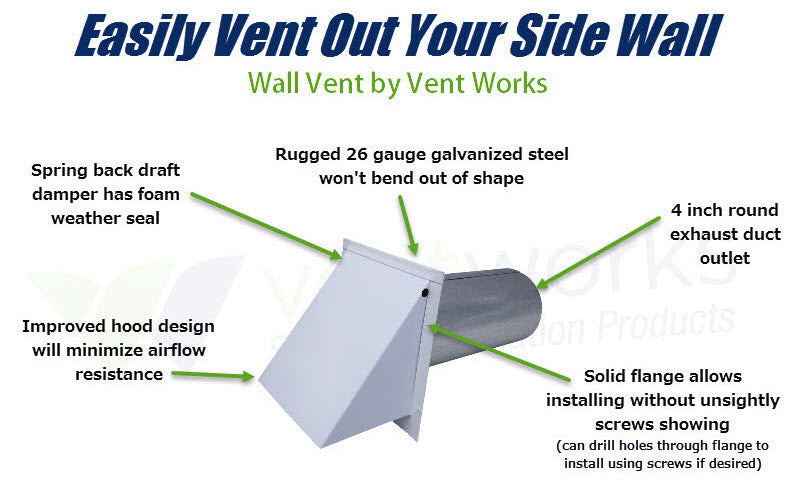

Features
Keep Bugs Out & Air In When Not In Use
The spring loaded backdraft damper keeps bugs out and air in when not in use.
Quiet Damper Operation
The backdraft damper's edge is lined with a foam gasket for quiet operation. No longer will the wind cause disruptive rattling sounds.
Keep Rodents Out
The 1/4 inch steel mesh screen keeps rodents out. Steel mesh is the ultimate rodent protection and ensures that pests stay out.
Choose from 3 Different Material Types
Galvanized Steel
Made with heavy duty 26 gauge galvanized steel. It's our most economical yet rugged material.
G-90 Steel
Aluminum
Thicker aluminum than the cheap vents you'll find at big box stores but it's thinner than our steel vents.
3003 Aluminum (.020 Thick)
Powder Coated Steel
Made with heavy duty 26 gauge steel then powder coated white for a
beautiful finish.
Polyester (TGIC) Coated Steel

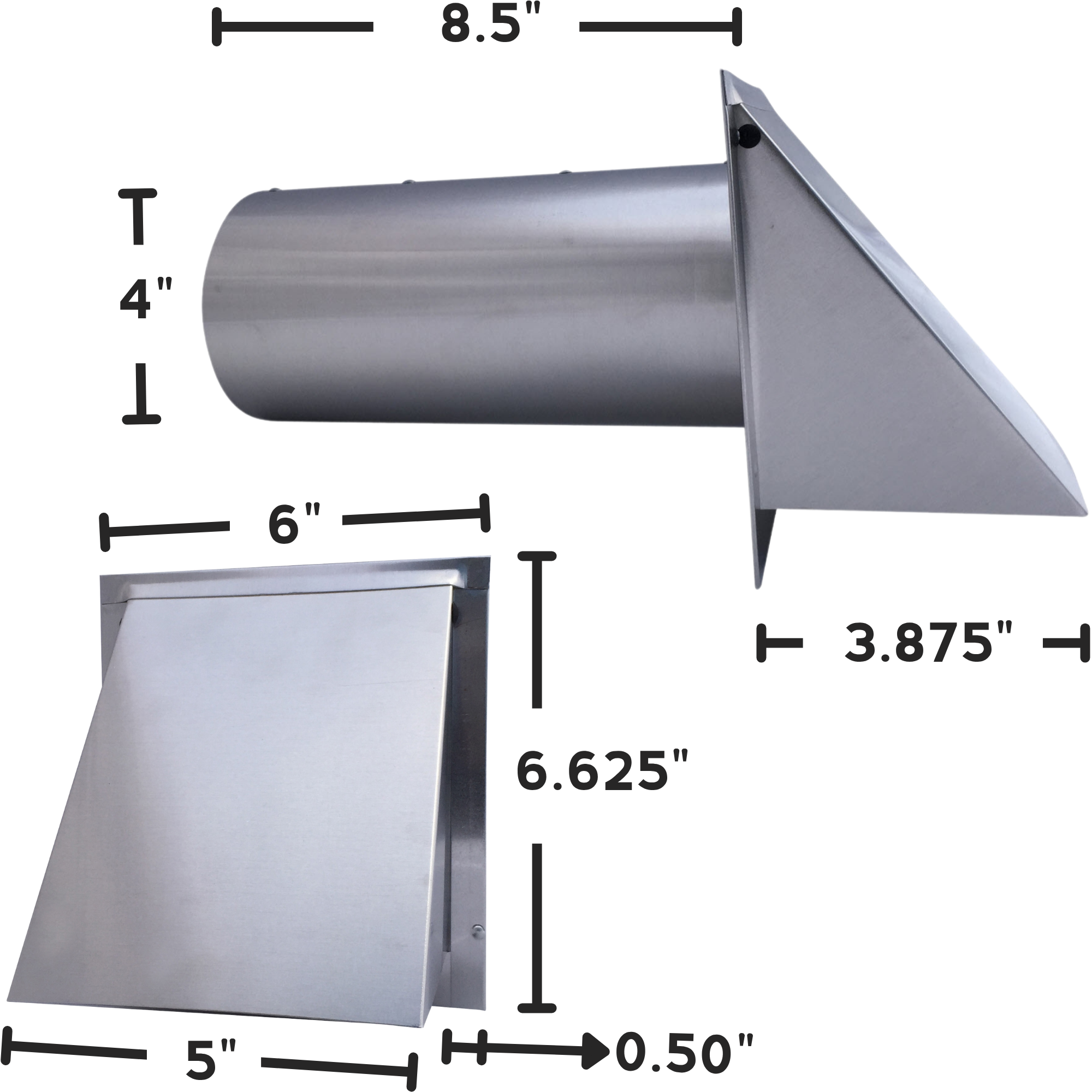

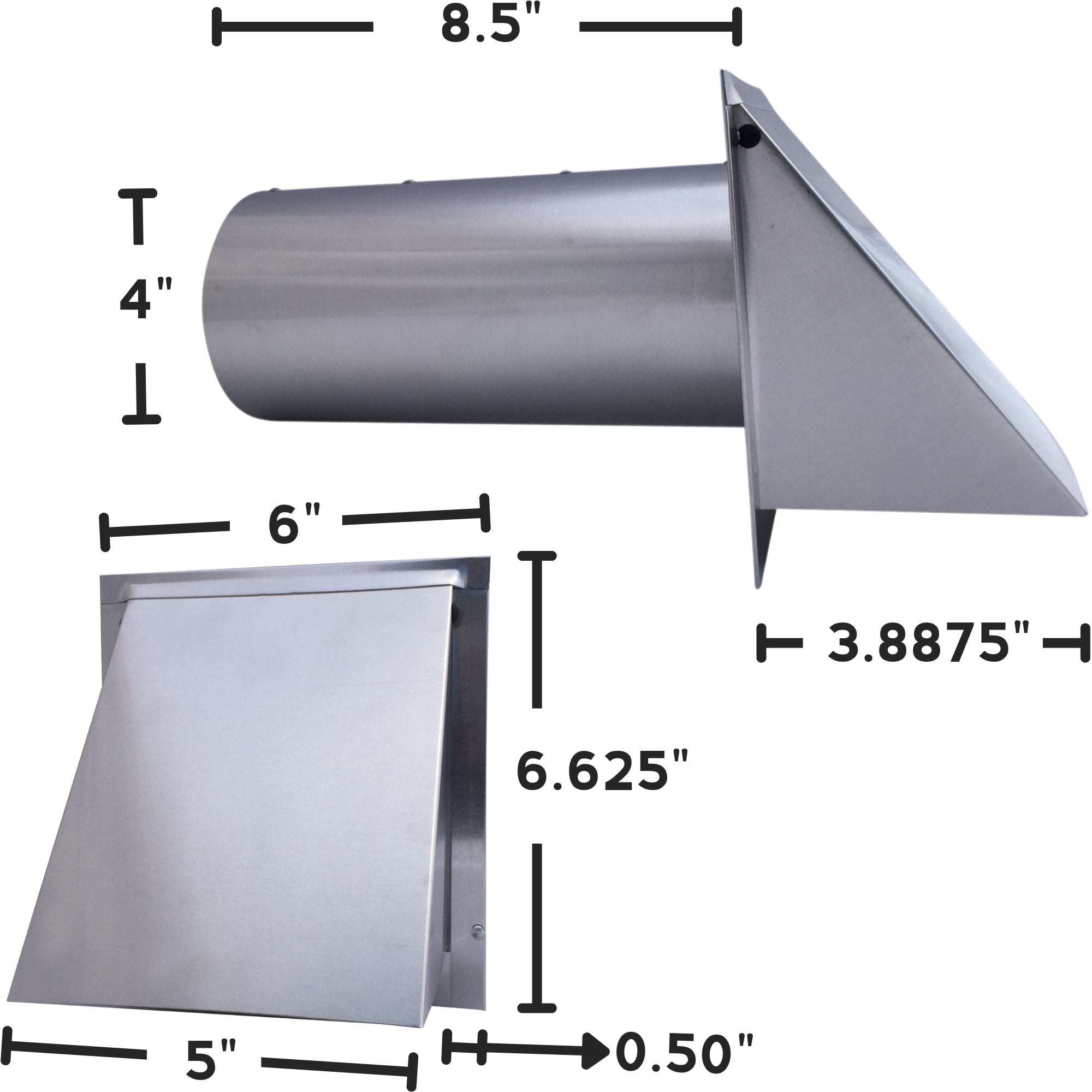

Specifications
| Specification | Details |
|---|---|
| Duct Diameter | 4" Inch Round Duct Outlet |
| Duct Length | 8.5" Inch |
| Flange Width | 6" Inch |
| Flange Height | 6.625" Inch |
| Flange Lip | 0.5" Inch |
| Hood Depth | 3.875" Inch |
| Hood Width | 5" Inch |
| Material |
Galvanized Steel (26 Gauge) Powder Coated Steel (26 Gauge) 3003 Aluminum (.020 Thick) |
| Screen | 1/4" Inch Metal Mesh Screen |
| Damper | Spring-Loaded Backdraft Damper |
| Weatherseal | Foam Weatherseal on Damper |
| Made In | USA |
