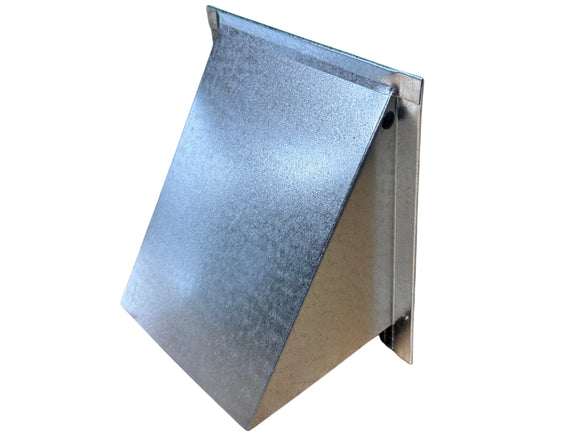

4 Inch Wall Vent Cover
Heavy Duty Metal Wall Vents Built To Last
When ductwork is already in place, this hood-only wall vent cover might be the right solution. Vent Works 4 Inch Wall Vent Cover installs flush to the existing 4″ vent pipe, making it ideal for retrofits and replacements, and serves as a durable side wall termination for a wide range of exhaust applications.
This exterior termination is used in a wide range of commercial and residential applications including bathroom exhaust, kitchen exhaust, laundry room exhaust, spray booths, laser engraving machines, and exhaust fan blowers
To Install: This hood-only wall vent cover mounts flush to the exterior wall with no collar. Slide it over the existing 4″ vent pipe, apply exterior-grade caulk around the top and sides, and fasten securely.
Features
Keep Bugs Out & Air In When Not In Use

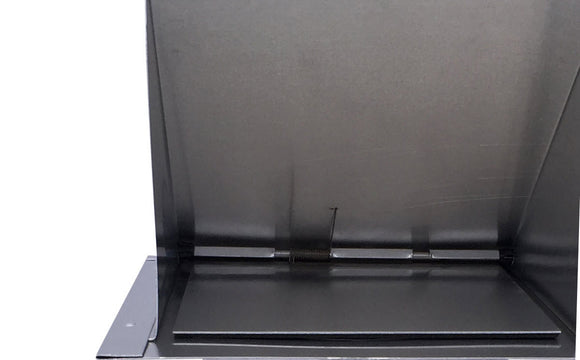

The spring loaded backdraft damper keeps bugs out and air in when not in use.
Quiet Damper Operation
The backdraft damper's edge is lined with a foam gasket for quiet operation. No longer will the wind cause disruptive rattling sounds.
Keep Rodents Out

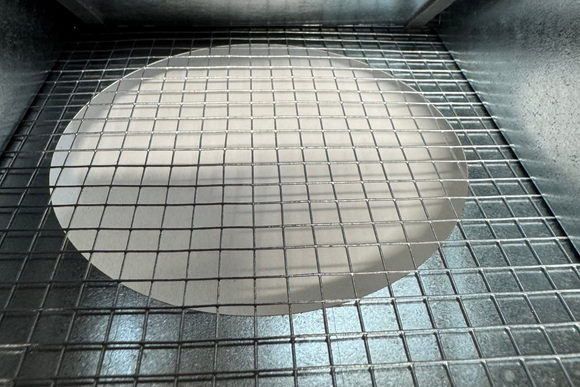

The 1/4 inch steel mesh screen keeps rodents out. Steel mesh is the ultimate rodent protection and ensures that pests stay out.
Specifications
| Specification | Details |
|---|---|
| Duct Diameter Hole | 4" Inch Round Duct Outlet Hole |
| Duct Length | No Duct/No Collar |
| Flange Width | 6" Inch |
| Flange Height | 6.625" Inch |
| Flange Lip | 0.5" Inch |
| Hood Depth | 3.875" Inch |
| Hood Width | 5" Inch |
| Material |
Galvanized Steel (26 Gauge) |
| Screen | 1/4" Inch Metal Mesh Screen |
| Damper | Spring-Loaded Backdraft Damper |
| Weatherseal | Foam Weatherseal on Damper |
| Made In | USA |
