Dryer Wall Vent

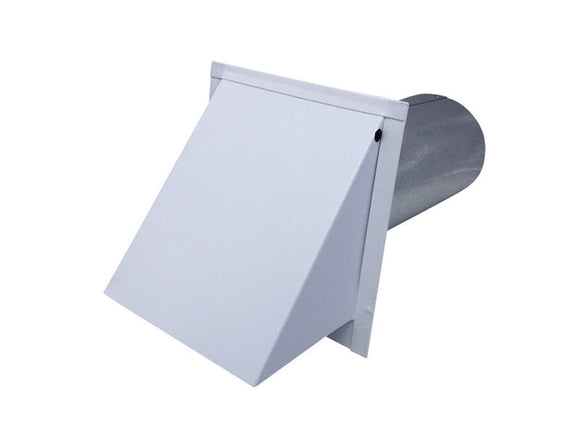

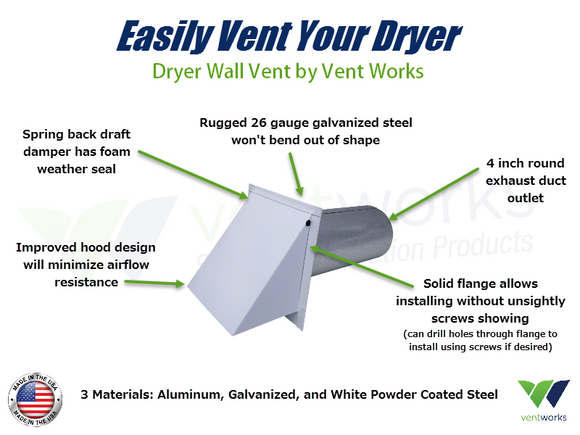

  • When venting through a wall is the best option a quality wall vent should be considered; the dryer wall vent by Vent Works was designed with a spring loaded backdraft damper to prevent drafting from outdoors. These heavy gauge vents are not available at your local home improvement or general hardware stores. There are 3 different material options; galvanized (26 gauge), white powder coated steel (26 gauge) and aluminum (high grade). Our vents are used in a wide variety of commercial and residential applications.

    To Install: Cut a 4-1/8” inch hole in the side wall and install, be sure to seal it.

  • NOT FOR USE AS FRESH AIR INTAKE

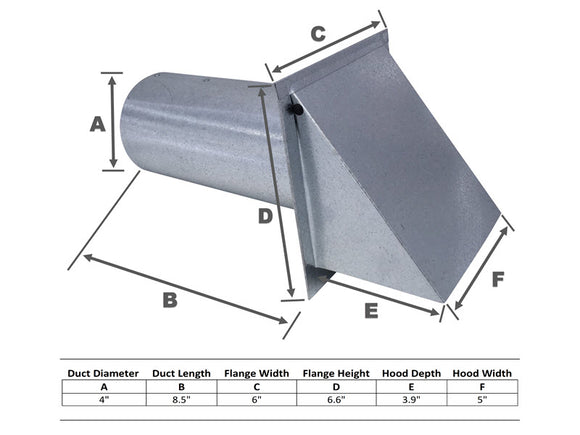

  • Wall Dryer Vent Specifications

    • Downloadable Dryer Wall Vent Specification Sheet
    • Duct Diameter: 4" Inch Round Duct Outlet (Standard Dryer Vent)

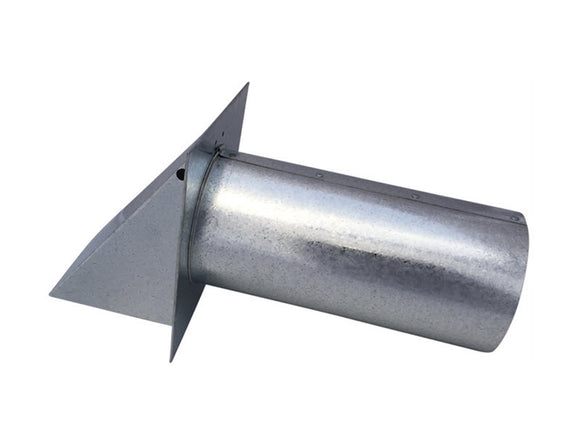

    • Duct Length: 8-1/2" Inch
    • Hood Width: 5" Inch
    • Hood Height: 6-1/4" Inch
    • Hood Sticks Out 4-1/8" Inch
    • Hood Flange Width: 6" Inch
    • Hood Flange Height: 6-1/2" Inch

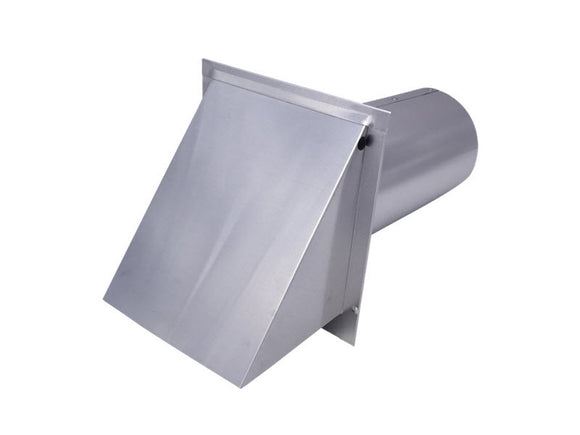

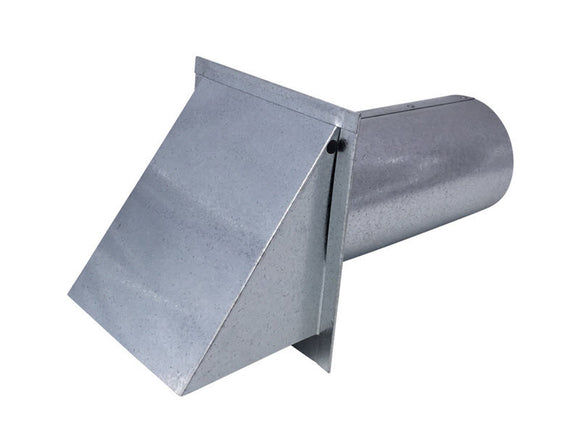

    • Material: 26 Gauge Galvanized Steel, Powder Coated Steel or Aluminum

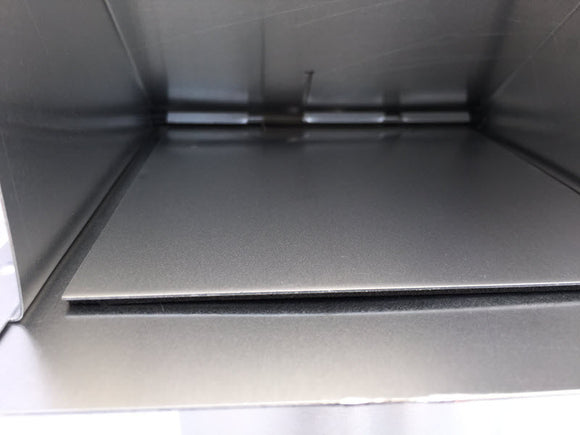

    • Spring-Loaded Backdraft Damper

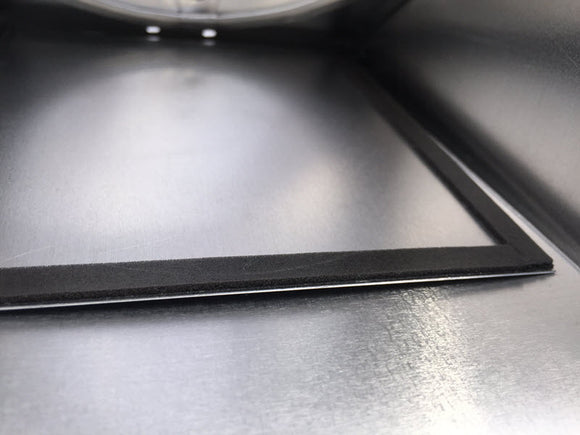

    • Open-Cell Foam Weather Seal on Damper
    • Made In USA

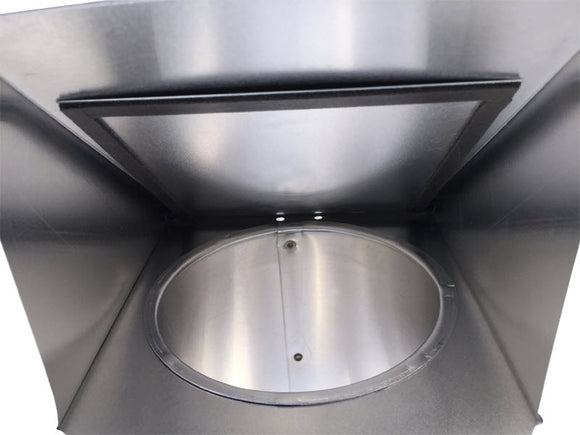

  • Is there a screen in the vent?

    No, our dryer vent does not have a screen. It doesn't need one; the spring loaded damper keeps animals and drafts out.

    Can this function as an intake vent?

    No; It can’t function as an intake vent without modification because the damper only goes one way to exhaust air out, it also doesn't have a screen because it's designed for dryer venting. The easiest thing to do would be to purchase a screened vent made for intake applications.

    Can I use this with a bathroom exhaust fan?

    Yes; Try to match the bathroom fan exhaust outlet with the wall vent, it’s best when the diameter of the fan outlet, vent and duct are all the same e.g. if the bathroom fan’s outlet is 4 inch use a 4 inch wall vent with 4 inch ducting etc. If needed use a reducer to decrease/increase the diameter size to bridge the gap of difference from your fan to vent.

    What size hole do I drill for the pipe?

    The duct (pipe) is 4” inch diameter so you'll want to drill a 4-1/8" diameter hole through the wall for the duct to fit properly.

    .

    Can I mount on a roof?

    No; it’s not designed for that application wall vents are designed to be installed through a side wall, you should use a roof vent.

    Can the duct pipe be cut down?

    Yes; the duct that comes off the back of the vent can be cut down with sheet metal shears or a hacksaw.

    Can the dryer vent be painted to match my house color?

    Yes; first prep by wiping down with a solvent like lacquer thinner or paint thinner to remove all oil residue so primer will adhere properly. Then use an epoxy or etching primer as a base. Then paint it with the color matched paint.
